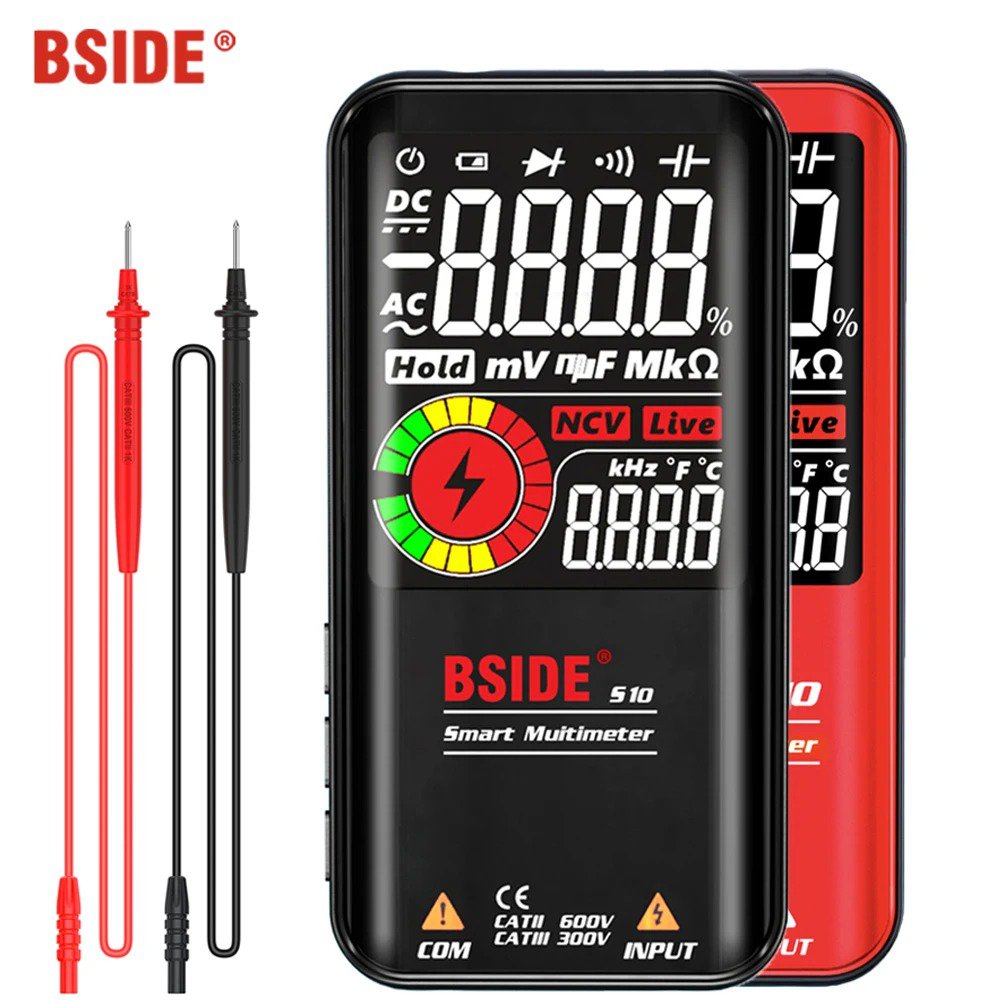

This series products belong to the latest generation of BSIDE brand smart multimeter！
The 3.5-inch large display design leaves an excellent user experience for buyers；The easy-to-use / Single Button to Switch design is well recognized by buyers；The ultra-thin body design is very portable.
Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as a gift.
EBTN color display.
Specifications:
Display: 9999 counts.
Screen: 3.5 inch.
DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.
Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.
V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.
S11 Power: Built-in rechargeable lithium battery.
Package Size: 147*85*42mm.
Package Weight: 180g
Package Includes:
1 * Multimeter. 1 * Test Lead.
1 * English user Manual. 1 * Packing Box.
1 * USB charging cable.
1 * EVA portable cloth bag.
1 * Protective shell.
